115.00 $

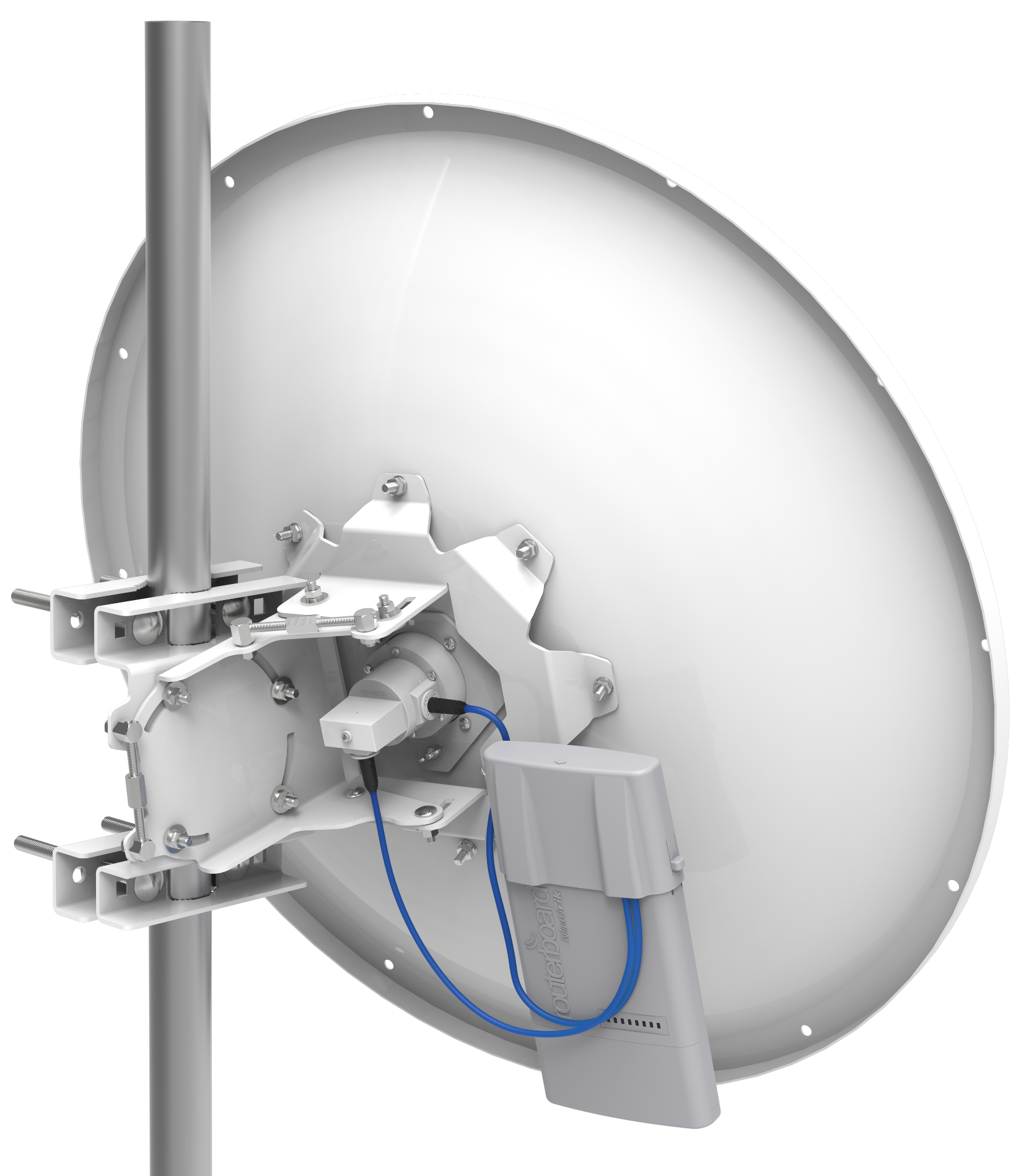

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

Product specifications

Details
Product code MTAD-5G-30D3-PA
Antenna gain DBI 30dbi
Frequency Range 4.7-5.875 GHz
Polarization Vertical and Horizontal
Beamwidth 3 deg
VSWR ≤ 1.4 typ, ≤ 1.8 max
Port to Port Isolation >40dB min
Front-to-Back Ratio >30 dB
Cross Polarization >40 dB
Power Rating 100W
Impedance 50 ohms
Elevation adjustment range /- 15 deg
Diameter x Depth 70 x 45cm (27.5 x 17.8in)
Weight 5.7kg (12.6 lbs)
Reflector Aluminum
Outdoor Rating ETSI EN 300 019-2-4
Standards EN 302 326 DN1, DN2, DN3, DN5
Wind Survivability 201kph (125mph)
Wind Load (125 mph) 181.4kg (400 lbs)
Operating Temperature -50°C to 80°C(-49°F to 158°F)
Pole Mount Diameter Range 3 to 10cm (1.2 to 3.9in)
Connector 2x RP-SMA Female (outside thread)
Packaged size 73x73x20cm (29x29x8in)
Packaged weight 8.4 kg (18,5)
