57.00 $

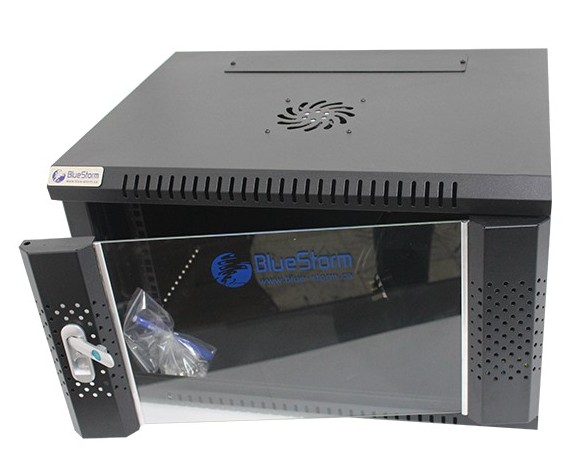

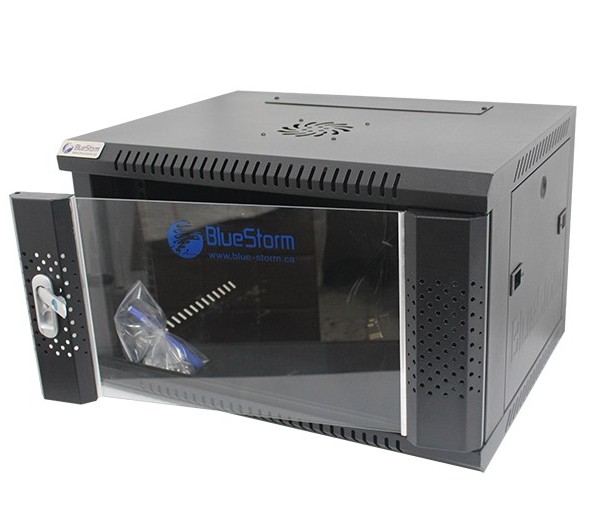

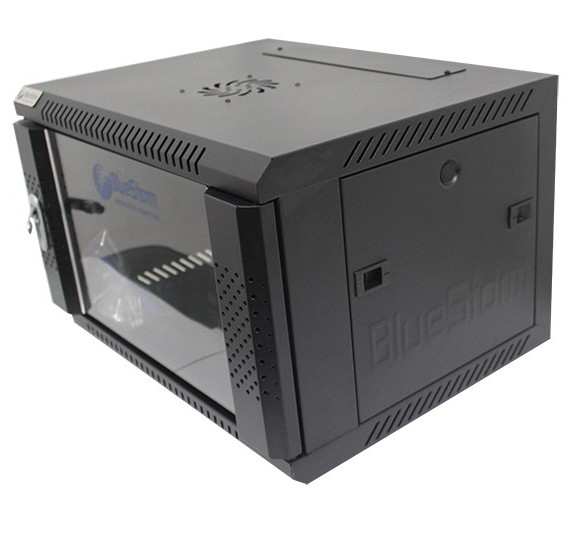

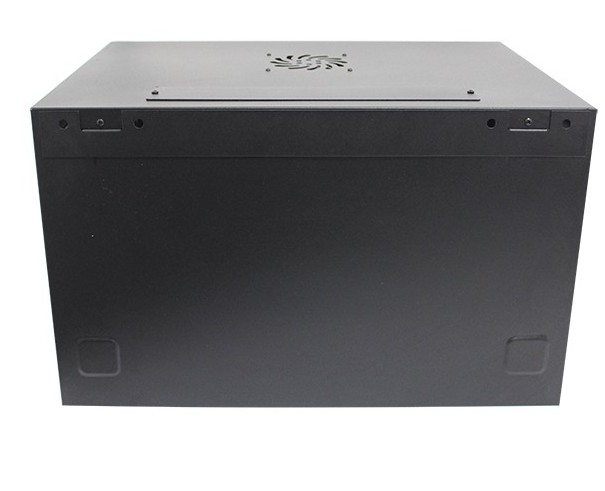

Wall Mount Cabinet

Standard size options

Width: 600 mm

Depth: 450 mm

Height: 6U

Customized size is available

Part Number: GC-W6U-604535

Features:

  1. Double section structure wall mounted cabinet, the open angle between the two sections is 120 degrees, the open angle for front door is over 180 degrees.
  2. Reliable structure, static loading capacity: 60KG.
  3. Quick and easy wall mounted, 19″ standard installation inside.
  4. The hinges for the back section are black heavy duty type.
  5. 5.120mm size fan could be installed at top of cabinet.
  6. Cable entry from top and bottom.
  7. IP Degrees: IP20.
  8. Flexible packing methods allows for convenient stocking and end user delivery
  9. Multiple sizes available.
  10. Customization requests welcome.
  11. The type could be in flat package saving more space and freight.



Standards and Materials:

Comply with ANSI/EIA; RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard, compatible with 19″ international standard, metric system and ETSI standard.

Finish: SPCC cold rolled steel or EG steel Finish: Mounting profile: 2.0mm; others: 1.2mm to 1.5mm

Color:

  • RAL9004(black)
  • RAL7035(grey)
  • RAL7039(dark grey)
