145.00 $

Outdoor Network Cable

Category: SF/UTP-CAT6-4P-PE

Test Standard: ISO/IEC11801、TIA- 568-C.2 YD/T1019

  • Bare solid copper conductor
  • Rohs/REACH complied PEJacket
  • Installation temperature:-30℃~+70℃

Application:

  • 100Base-TX
  • 100Base-T
  • 100VG-AnyLAN
  • 1000Base-T(Gigabit Ethernet)
  • 1000Base-TX
  • ATM
  • Noisy Environments

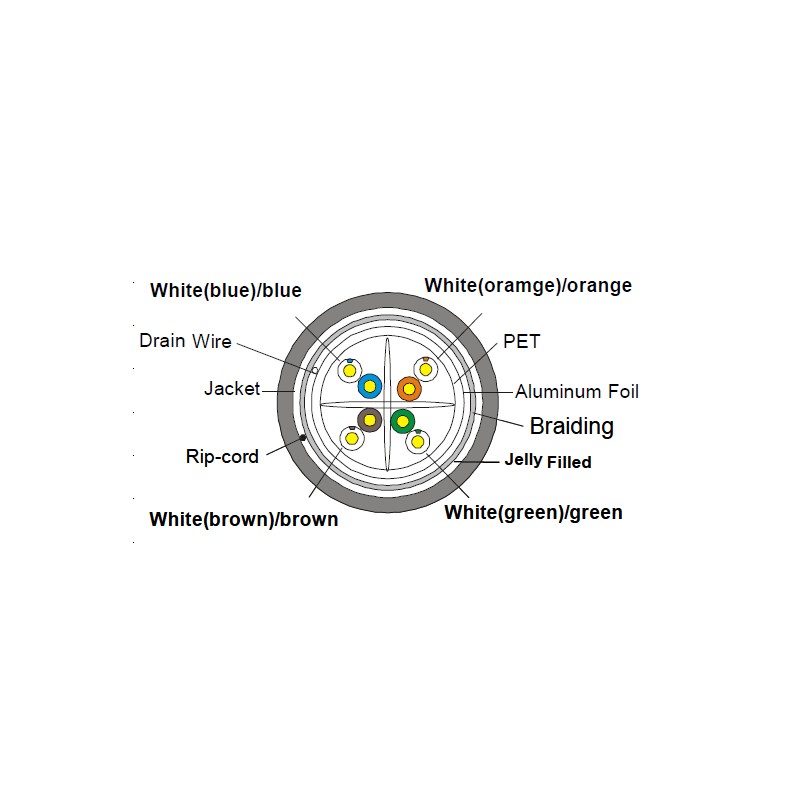

Conductor

  • Material :SOLID-Bare Copper
  • Nom.O.D.(mm): 0.580 up +0.008   down -0.008

Insulation

  • Material: HDPE
  • Diameter: 1.10±0.05 mm

Inner Screening
Material

  • Aluminum Foil :0.075*25mm
  • Drain wire :YES

Braid

  • Aluminum Foil +Braiding : 7*16   0.12 MM
  • Coverage : ≥80%

Sheath

  • Thickness: 0.60±0.02 mm
  • External O.D.: 7.6±0.2 mm
  • Surface:Clean,Frap
  • Material: PE(JellyFilled)
  • Color: Black

Surface Printing

  • Letter height:  2.5±0.3mm
  • Color:  White
  • Print error & Space : ≤±0.5%,1m

Core Color

  • 1 White-Blue/Blue
  • 2 White-Orange/Orange
  • 3 White-Green/Green
  • 4 White-Brown/Brown

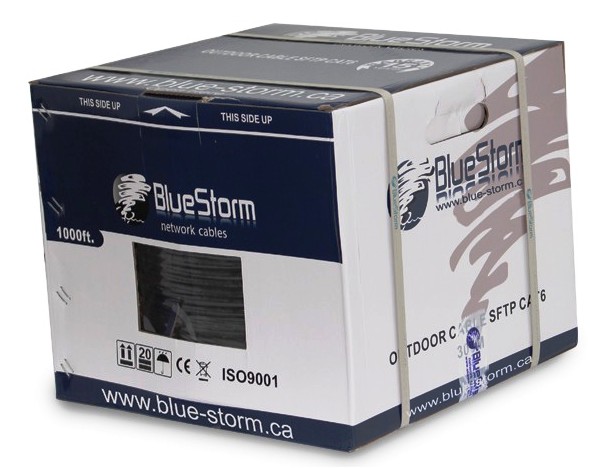

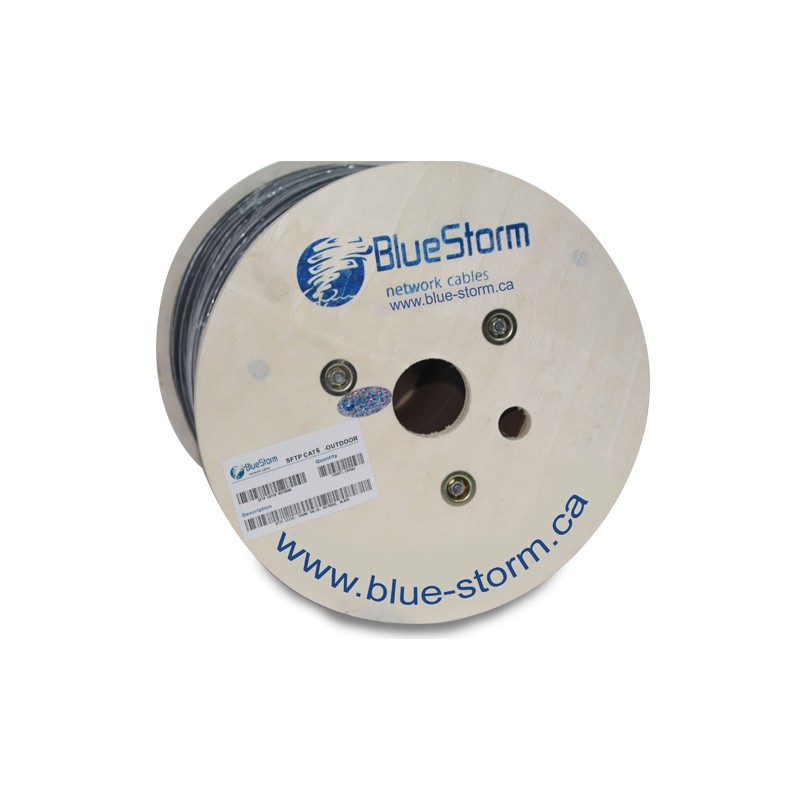

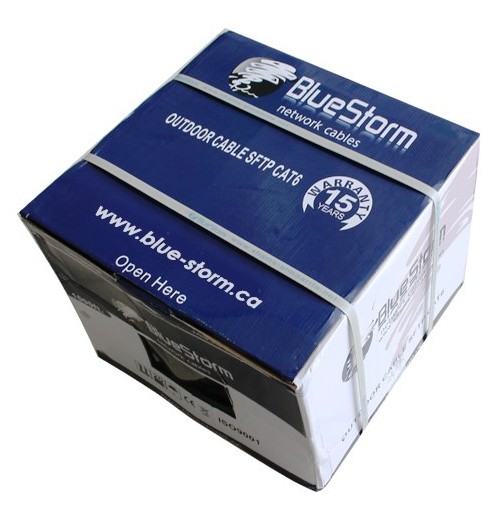

Packing

  • Wooden Tray & Carton

Carton Dimension

  • 380*380*315 mm

Packing length

305±1.0m

Rip-cord

  • Yes
