Cat5e SFTP Outdoor Network Cable

Application:

• 100Base-TX 100Base-T
• 100VG-AnyLAN
• 1000Base-T(Gigabit Ethernet) 1000Base-TX
• ATM

Conductor

• Material :SOLID-Bare Copper
• Nom.O.D.(mm): 0.510 up +0.008   down -0.008

Insulation

• Material:HDPE
• Diameter: 1.01±0.05mm

Inner Screening
Material

• Aluminum Foil :0.075*20mm
• Drain wire :YES

Braid

• Aluminum Foil +Braiding : 7*16   0.12 MM
• Coverage : ≥80%

Sheath

• Thickness: 0.60±0.02 mm
• External O.D.: 6.2±0.2 mm
• Surface:Clean,Frap
• Material: PE (JellyFilled)
• Color: Black

Surface Printing

• Letter height:  2.5±0.3mm
• Color:  White
• Print error & Space : ≤±0.5%，1m

Core Color

• A.Blue, White-Blue
• B.Orange,White-Orange
• C.Green,White-Green
• D.Brown, White-Brown

Packing

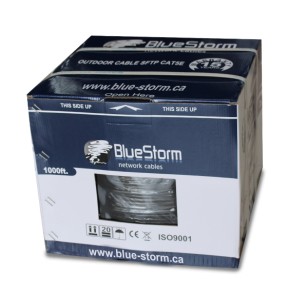

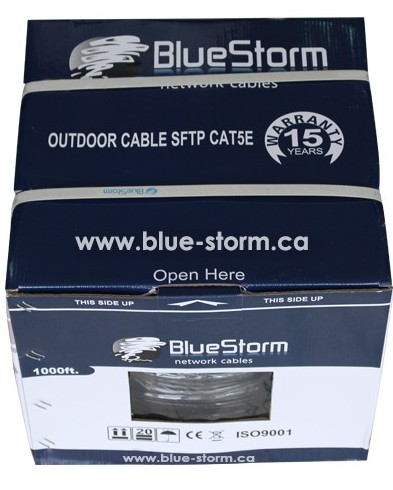

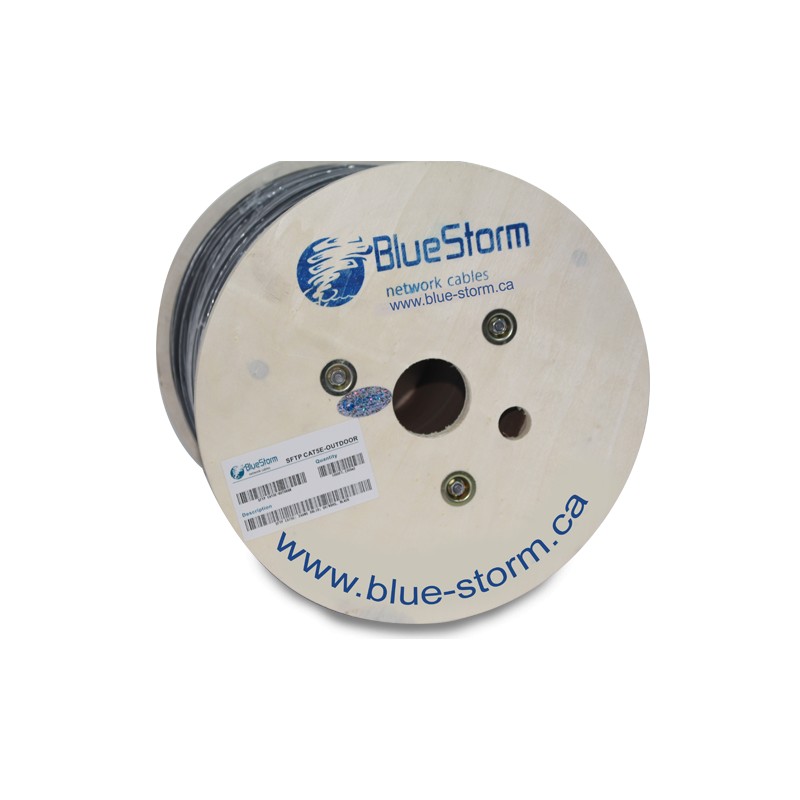

• Wooden Tray & Carton

Carton Dimension

• 345*345 * 295 mm

Packing length

• 305±1.0m
